Tungsten Rod& wire

1) Standard: GB / T 4187-2017

2) Usage: mainly used for manufacturing electric vacuum parts, guide rods, electrodes, outgoing lines, high-temperature parts, furnace heating rods, etc.

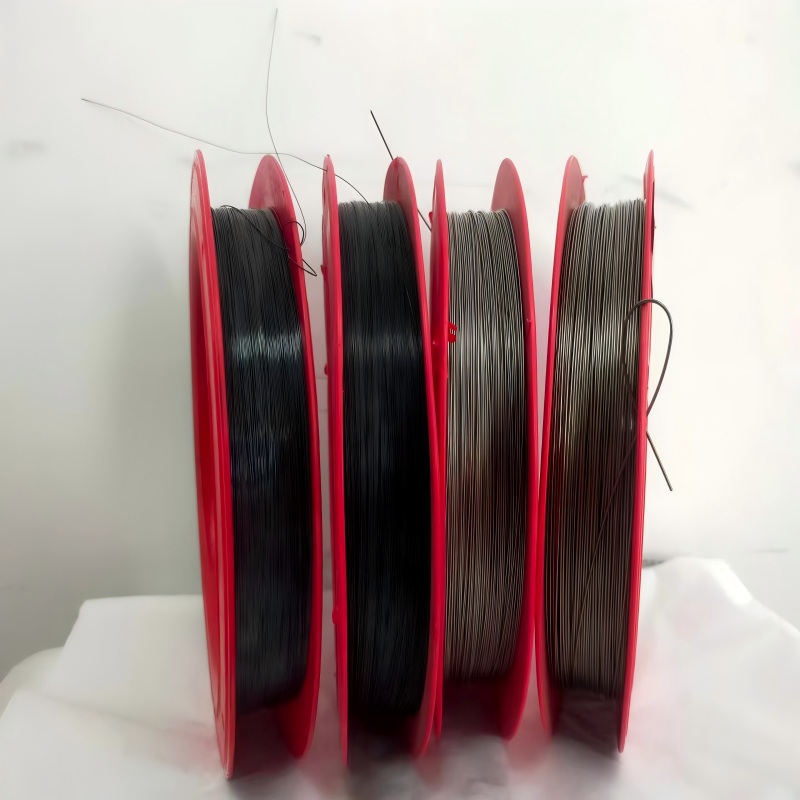

Produce Name: tungsten wire

1. Diameter range: 0.01mm-3mm

3) Standard: GB / T 4187-2017

4) High temperature performance: subdivide various high temperature performance requirements according to different uses of customers.

5) Consistency of wire diameter: the quality difference of any two continuous 200mm wire segments of tungsten wire shall not exceed 0.5% of the nominal specification.

6) Straightness: straightening tungsten wire: tungsten wire with diameter <100um, and the natural sag height of each 500mm wire segment >450mm; For tungsten wire with diameter >100um, the arc height of every 100mm chord length is ≤ 10mm.

7) Surface condition: the surface is smooth without cracks, burrs, scratches, pits, unevenness, oil stains and other defects.

8) Wire winding performance: in the process of wire winding, tungsten wire does not work continuously.
