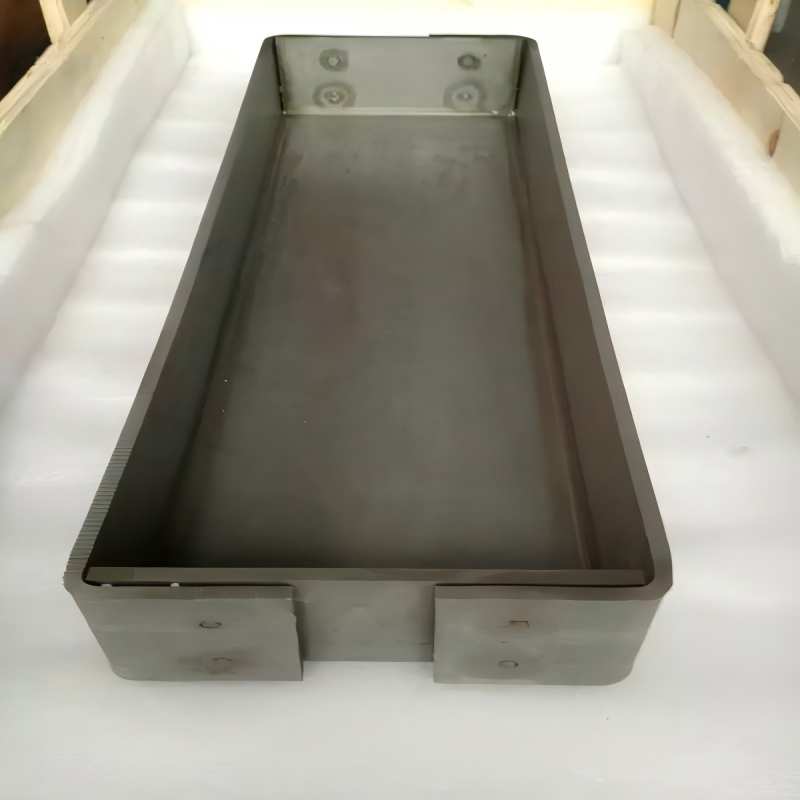

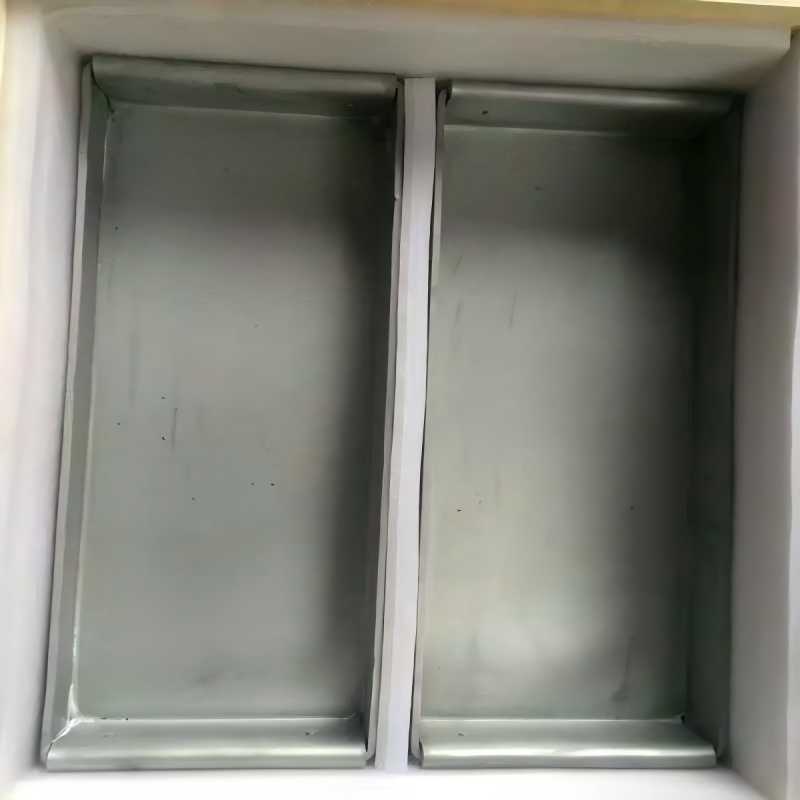

Molybdenum boats
Product name | Molybdenum boats |
Place of Original | Shaanxi, China |
Type | Mo1 Mo2 molybdenum boat |
Thickness | 0.1mm/ 0.2mm/ 0.3mm/ 0.5mm or as request |
Length | 100mm or as customer size |
Tought size | as customer size |
Shape | evaporation boat |
Material | pure molybdenum or molybdenum alloy |
Application | vacuum coating / evapporation and so on |
Surface | bright |
Density | 10.2g/cm3 |
Chemical composition | 99.95% min molybdenum |
1).Metallizing, Electron-beam Spraying ,sinteting annealing in reducing atmosphere in electronics.
2). Military and light industries
3).Evaporate small lengths of wire or to evaporate materials.
4).Molybdenum boat is ideal for use in small evaporation systems.
5).Molybdenum boats sources are used for the vacuum evaporation of materials.
3. Features
1). The highest melting point of all metals, relatively stable chemical properties
2). Excellent resistance to electrochemical corrosion , not easily corroded by air .
3). High wearability, High hardness, high density.
4). Good high temperature strength.
4. Mo boat dimension
Name | Symbol of products | Size(mm) | Trough Length (mm) | Trough Depth (mm) |
molybdenum boats | HZM210--00PG | 0.2*10*100 | 50 | 2 |
HZM215-00PG | 0.2*10*100 | 50 | 7 | |
HZM216--03PG | 0.2*25*118 | 80 | 10 | |
HZM308--00YG | 0.3*8*100 | 50 | 2 | |
HZM310-00PG | 0.3*10*100 | 50 | 2 | |
HZM310--01PG | 0.3*10*70 | 40 | 1.8 | |
HZM312--00YG | 0.3*12*100 | 50 | 2 | |
HZM310--02YG | 0.3*13*49 | 33 | 3.3 | |
HZM315-03YG | 0.3*15*100 | 50 | 7 | |
HZM316--00PG | 0.3*16*100 | 50 | 4 | |
HZM318--03YG | 0.3*18*100 | 40 | 3.5 | |
HZM514--00YG | 0.5*14*100 | 50 | 2.6 | |
HZM515--00PG | 0.5*15*100 | 50 | 2.6 |
